SKU: VRT-17009 Category:

LINEO 250 V0

  • Material: self-extinguishing plastic resin (self-extinguishing capacity V0)
  • Nominal diameter 250 mm.
  • 2-speed AC motor with thermal overload cut-out and shaft-in-bearing rotation, coupled to axial-centrifugal mixed-flow impeller.
  • Minimum air flow 990 m3/h
  • Maximum air flow: 1350 m3/h
  • IMQ SAFETY and IMQ PERFORMANCE certifications
  • Warp speed controllers.



TECHNICAL DATA AND PERFORMANCE DATA

  • Frequency (Hz)50
  • Insulation class II° IP 44
  • Maximum absorbed current at maximum speed (A) 0.75
  • Maximum absorbed current at minimum speed (A) 0.60
  • Maximum absorbed power at maximum speed (W) 170
  • Maximum ambient temperature for continuous operation (°C) 60
  • Power absorbed in 1st gear (W) 140 Voltage (V) 220-240
  • Weight (Kg) 7
  • Air flow in 1st gear (l/s) 277.8
  • Air flow in 1st gear (m³/h) 1000
  • LWA sound breaking power at max speed ​​ [wpcodeself] ​​ 71.2[dB (A)]
  • LWA audio breaking power with minimum speed ​​ [wpcodeself] ​​ 58.7[dB (A)]
  • Split sound pressure at 3 meters at maximum speed Lp ​​ [wpcodeself] ​​ 50.6[dB (A)]
  • Split sound pressure at 3 meters with minimum velocity Lp ​​ [wpcodeself] ​​ 38.2[dB (A)]
  • Maximum airflow at maximum speed (l/s) 350
  • Maximum airflow at maximum speed (m³/h) 1260
  • Maximum pressure at maximum speed (mmH20) 52
  • Maximum pressure at maximum speed (Pa) 510
  • Maximum revolutions per minute 2520
  • Minimum revolutions per minute 2000
  • Feed-side audio power at minimum speed LWA ​​ [wpcodeself] ​​ 88[dB (A)]
  • Pressure in 1st gear (mmH20) 38
  • Pressure in 1st gear (Pa) 372.7
  • Output side sound power at maximum speed LWA ​​ [wpcodeself] ​​ 90.8[dB (A)]
  • Output side sound power at minimum speed LWA ​​ [wpcodeself] ​​ 84.5[dB (A)]
  • Feed-side sound power at maximum speed LWA ​​ [wpcodeself] ​​ 94.2[dB (A)]
  • Exhaust side sound pressure at 3m at maximum speed Lp ​​ [wpcodeself] ​​ 73.3[dB (A)]
  • Exhaust side sound pressure at 3m at minimum speed Lp ​​ [wpcodeself] ​​ 67[dB (A)]
  • Feed side sound pressure at 3m at maximum speed Lp ​​ [wpcodeself] ​​ 76.7[dB (A)]
  • Sound pressure on feed side at 3m at minimum speed Lp ​​ [wpcodeself] ​​ 80.5[dB (A)]

Technical Data Sheet

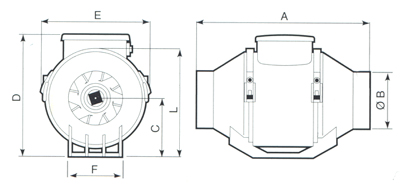

DIMENSIONS







  • Size A (mm) 300
  • Size B (mm) 317
  • Size C (mm) 385
  • Size D (mm) 247
  • Size E (mm) 152.5
  • Size F (mm) 292
  • Size G (mm) 176.5
  • Size H (mm) 140
  • Size L (mm) 145
  • Size M (mm) 8
