SKU: VRT-17007 Category:

LINEO 200 Q V0

  • Material: self-extinguishing plastic resin (self-extinguishing capacity V0)
  • Nominal diameter 200 mm.
  • 2-speed AC motor with thermal overload cut-out and shaft-in-bearing rotation, coupled to axial-centrifugal mixed-flow impeller.
  • Minimum air flow 700 m3/h
  • Maximum air flow: 950 m3/h
  • IMQ SAFETY and IMQ PERFORMANCE certifications
  • Warp speed controllers.





TECHNICAL DATA AND PERFORMANCE DATA

  • Frequency (Hz) 50
  • Insulation class II° IP 44
  • Maximum absorbed current at maximum speed (A) 0.37
  • Maximum absorbed current at minimum speed (A) 0.22
  • Maximum absorbed power at maximum speed (W) 75
  • Maximum ambient temperature for continuous operation (°C) 60
  • Nominal diameter (mm) 200
  • Power absorbed in 1st gear (W) 45
  • Voltage (V) 220-240
  • Weight (Kg) 4.3
  • Air flow in 1st gear (l/s) 194.4
  • Air flow in 1st gear (m³/h) 700
  • Maximum airflow at maximum speed (l/s) 263.9
  • Μέγιστη ροή αέρα στη μέγιστη ταχύτητα (m³/h) 950
  • Maximum pressure at maximum speed (mmH20) 29
  • Maximum pressure at maximum speed (Pa) 284.5
  • Maximum revolutions per minute 2740
  • Minimum revolutions per minute 1780
  • Pressure in 1st gear (mmH20) 13
  • Pressure in 1st gear (Pa) 127.5
  • Sound pressure at 3 m – min speed Lp ​​ [wpcodeself] ​​ 3m – min speed 39.6[dB (A)]
  • Sound pressure at 3m at maximum speed Lp ​​ [wpcodeself] ​​ 49.0[dB (A)]

Technical Data Sheet

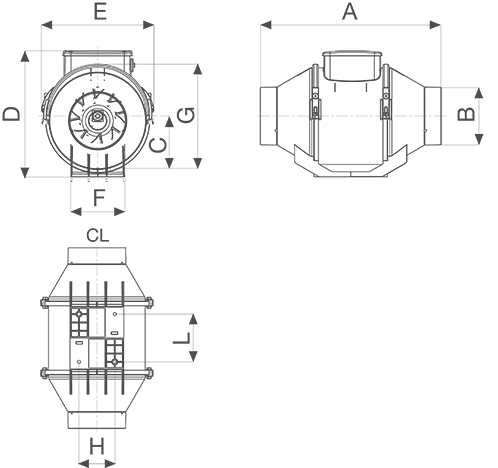

DIMENSIONS









  • Size A (mm) 234.5
  • Size B (mm) 260.5
  • Size C (mm) 300
  • Size D (mm) 196
  • Size E (mm) 125.5
  • Size F (mm) 235
  • Size G (mm) 140
  • Size H (mm) 94
  • Size L (mm) 100
  • Size M (mm) 6



CERTIFICATES
