VORT INVISIBLE MINI TOP

• Housing made of sheet steel, painted white. internal components made of EPP.
• Inlet and outlet duct connection ports compatible with nominal diameters of 100 mm and 125 mm.
• 2 x EC brushless motors, each connected to a centrifugal impeller. 3 speeds.
• High efficiency counterflow type heat exchanger.
• Mechanical automatic by-pass, 100% filtered.
• Advanced electronic suite, easily accessible for initial setup and routine maintenance tasks. functions offered:
• setting of operating parameters (fan speed, relative humidity limit, etc.),
• automatic management of the bypass,
• anti-freezing protection of the heat exchanger,
• automatic management of the (optional) preheater, if installed,
• operation in Vmax suspension in a predefined time slot, which can be set during installation (QUIET function). a backup battery ensures continuous updating of the time marked by the clock (RTC – Real Time Clock), even in the event of a power failure,
• possibility of automatic switching to Vmax by connecting it to bathroom lighting (BOOST ROOM LIGHT function),
• possibility of operating the automatic switch at reduced speed (30% less than Vmin), useful to provide the correct air exchange during long absence of passengers, also reducing consumption (HOLIDAY mode),
• filter status monitoring: the need for cleaning/maintenance is shown on the remote control panel display,
• possibility of connection with presence sensor (PIR), with possibility of automatic switch management at Vmax,
• 2 x ISO COARSE 45% (G3) filters, with air extraction (stale) and in (fresh) air supply. ISO COARSE 65% (G4) filter for exhaust port, ePM10 50% (M5), ePM1 55% (F7) and ePM1 80% (F9) filters for supply port are available as options.
• Condensate collection vessel with overflow protection.

TECHNICAL DATA AND PERFORMANCE DATA

  • Filter category in ISO CARSE 45% extract (G3)
  • Filter class at flow rate ISO CARSE 45% (G3)
  • Frequency (Hz)50
  • Insulation classI°
  • IPX2
  • Maximum absorbed current at maximum speed (A)0,65
  • Maximum absorbed current at minimum speed (A)0,30
  • Engine category B
  • Nominal diameter (m)100/125
  • Rated power at maximum speed (W)64
  • Rated power at minimum speed (W)16
  • Number of phases (Ph)1
  • Voltage (V)
  • 220-240
  • Weight (Kg)14
  • Sound breaking power LWA 53
  • Air flow at 1st speed (m³/h)50
  • Sound breaking power LWA [dB(A)]
  • Sound pressure decay at 3 metres at maximum speed Lp 36[dB (A)]
  • Maximum air flow at maximum speed (l/s)33.3
  • Maximum airflow at maximum speed (m³/h)120
  • Maximum pressure (mmH2O)38,2
  • Maximum pressure (Pa)375
  • Maximum revolutions per minute3900
  • Maximum thermal efficiency (%)87,0
  • Minimum revolutions per minute1830
  • Sound power at the exhaust inlet LWA 53[dB(A)]
  • Sound power at the power outlet LWA 69[dB(A)]
  • Sound pressure at 3m at maximum speed on the exhaust side Lp [dB (A)]35
  • Sound pressure at 3m at maximum speed on the supply side Lp 52[dB (A)]

Technical Data Sheet

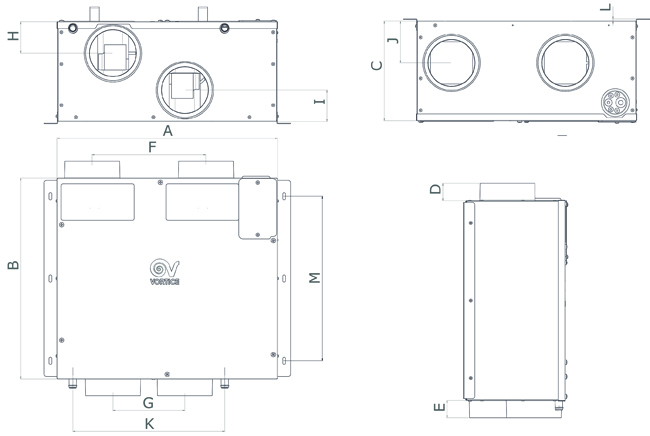

DIMENSIONS







  • Size A (mm)484
  • Size B (mm)440,5
  • Size C (mm)218
  • Size D (mm)40
  • Size E (mm)5
  • Size F (mm)250
  • Size G (mm)158
  • Size H (mm)69
  • Size I (mm)69
  • Size J (mm)92
  • Size K (mm)333
  • Size L (mm)513
  • Size M (mm)361
